Guangxi Yuchai International Trade Co., Ltd. yog ib tug ua manufacturers thiab lwm tus neeg ntawm ycg-100n5lc uas ntsiag to roj generator teeb nyob rau hauv Suav teb. Thov koj xav tias dawb rau cov lag luam wholesale bulk zoo cov cuab yeej ua nyob rau hauv Suav teb nov thiab tau txais cov lus hais los ntawm peb lub hoobkas. Peb kuj txais customized txiav txim.

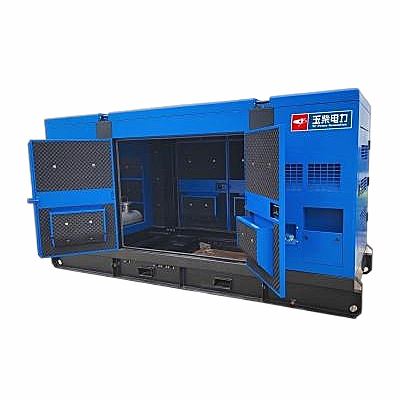

YCG-100N5LC
Rated zog: 100kW
Gas qhov chaw: natural gas (CH4Ntau dua lossis sib npaug li 85%)
Voltage zaus: 400V / 50Hz
Khoom taw qhia
YCG-100N5LC series roj generator teeb yog lub tshuab hluav taws xob teeb tsa ntawm nws tus kheej tsim los ntawm Yuchai, uas qhia txog lub tshuab hluav taws xob siab tshaj plaws los ntawm tsev thiab txawv teb chaws thiab sib txuas ntau xyoo ntawm kev ua lag luam. Lub tsev tau txais kev tswj hwm roj, uas tau raug kuaj xyuas nruj los ntawm Yuchai txoj kev txhim kho tshuab thiab ua kom zoo dua los ntawm cov txheej txheem kev txhim kho kev sib txuas. Cov khoom siv roj av no muaj cov yam ntxwv ntawm kev ntseeg siab, kev ua haujlwm siab thiab kev tiv thaiv ib puag ncig, thiab cov nqi tu qis, thiab tuaj yeem ua tau raws li qhov xav tau ntawm cov neeg siv sib txawv.
Kev ntseeg siab
Raws li kev tsim thiab tsim platform ntawm cov khoom lag luam paub tab, Yuchai nws tus kheej tsim thiab tsim cov khoom siab -kub hnav- cov ntaub ntawv resistant haum rau cov khoom siv roj teeb, nrog rau siab - lub zog tseem ceeb xws li lub tog raj kheej blocks, lub tog raj kheej taub hau, camshafts, crankshafts, thiab improvasability ntawm cov khoom siv zoo heev.
01
Efficient thiab Environmentally Friendly
Los ntawm kev siv cov thev naus laus zis xws li lean combustion, Yuchai patented combustion chamber, thiab oxygen sensor kaw -loop tswj, peb xyuas kom meej thiab huv combustion roj, meej tswj huab cua-roj piv, qis emissions, thiab txhim kho kev ua tau zoo sib xws thiab ruaj khov, uas yog tus phooj ywg rau ib puag ncig.
02
Tus nqi kho mob tsawg
Los ntawm kev siv Yuchai lub patented lub tog raj kheej liner, piston nplhaib, thiab valve sealing thev naus laus zis, kev noj cov roj lubricating tau txo qis. Gas generator sets yog nruab nrog universal thiab yooj yim los tswj cov khoom, txo tus nqi tu rau cov khoom siv hluav taws xob.
03
Kev Tiv Thaiv Kev Nyab Xeeb
Txais kev tswj hwm kev ywj pheej thiab paub tab, lub kaw lus tswj tau ruaj khov thiab saib xyuas tag nrho cov xwm txheej hauv lub sijhawm tiag tiag - kom ntseeg tau tias muaj kev nyab xeeb ntawm tag nrho lub tshuab.
04
Lub tshuab hluav taws xob
Lub tshuab hluav taws xob muaj qhov zoo ntawm lub zog tsim hluav taws xob ua haujlwm tau zoo, tsis tshua muaj qhov kub thiab txias, tsis tshua muaj qhov cuam tshuam ntawm waveform distortion, zoo dynamic kev ua tau zoo, thiab ruaj khov AVR thaum uas tig mus ua haujlwm. Nws muaj thawj -chav kawm kev ntseeg siab thiab kav ntev, thiab tuaj yeem ua tau raws li qhov xav tau ntawm ntau qhov chaw hnyav.
05
Standard configuration ntau yam
|
TSIS MUAJ. |
Cov khoom npe |
Chav tsev |
Ntau |
TSIS MUAJ. |
Cov khoom npe |
Chav tsev |
Ntau |
|
1 |
Roj cav | Ntauwd |
1 |
7 |
Silencer, corrugated yeeb nkab | Teeb |
1 |
|
2 |
Lub tshuab hluav taws xob | Ntauwd |
1 |
8 |
Lub roj teeb cia | Teeb |
1 |
|
3 |
Dej tank radiator | Ntauwd |
1 |
9 |
Shock absorber | Tus kheej |
6 |
|
4 |
Lub hauv paus | Ntauwd |
1 |
10 |
Random cuab yeej |
Teeb |
1 |
| 5 | Local tswj txee | Ntauwd | 1 | 11 | Random cov ntaub ntawv | Teeb | 1 |
| 6 | Valve pawg | Teeb | 1 | ||||
| Cov ntaub ntawv random muaj xws li: phau ntawv neeg siv, daim duab qhia kev teeb tsa sab nraud, cov lus qhia tsis zoo, phau ntawv qhia lub cev muaj zog, cov lus qhia hluav taws xob, xov tooj hluav taws xob, thiab peb daim ntawv pov thawj kev pabcuam. | |||||||
Tswj muaj nuj nqi
|
Basic muaj nuj nqi |
Fais fab hloov, pib, nres, nres thaum muaj xwm ceev, kev tswj / tawm, thiab lwm yam. |
|
Zaub muaj nuj nqi |
Phase voltage, kab hluav taws xob, tam sim no, zaus, theem ib ntus, lub zog ua haujlwm, lub zog rov ua haujlwm, pom lub zog, lub zog muaj zog, kev tsim hluav taws xob sib txuas, ceev, roj siab, dej txias, chav ua haujlwm lub sijhawm, lub sijhawm pib pib, roj teeb voltage, thiab lwm yam. |
|
Kev tiv thaiv muaj nuj nqi |
Overspeed, underspeed, overvoltage, undervoltage, tshaj zaus, nyob rau hauv zaus, overcurrent, dhau lub zog, tsis tshua muaj roj siab, dej kub, tsis tshua muaj roj teeb voltage, them tsis ua hauj lwm, thiab lwm yam. |
Chav tsev loj & hnyav
| Unit net size & net weight | Ntev/A | Dav / B | Siab / C | Qhov hnyav |
|
2400 hli |
9 80mm |
1450 hli |
1200 kg |
Nco tseg: Cov ntaub ntawv thiab cov ntaub ntawv saum toj no yuav raug hloov kho nrog cov khoom siv kho dua tshiab, thiab Yuchai muaj txoj cai los hloov kho.
Cim npe nrov: ycg-100n5lc uas ntsiag to gas generator teeb, Tuam Tshoj ycg-100n5lc uas ntsiag to gas generator teeb manufacturers, lwm tus neeg, Hoobkas, Yuchai
| Generator Teeb Parameters | |
| Qauv |
YCG-100N5LC |
| Rated zog |
100 kW/125 kVA |
| Rated ceev |
1500r / min |
| Rated voltage |
400V
|
| Rated tam sim no |
180A |
| Ntau zaus |
50 HZ |
| PF | 0.8 (txog) |
| Generator efficiency |
Ntau dua lossis sib npaug li 32.3% |
| Roj noj tus nqi raws li tag nrho cov load |
34.0m³/h |
| Suab nrov |
Tsawg dua lossis sib npaug li 115dB(A) @ 1m |
| Pib txoj kev | Hluav taws xob pib |
| Qhov hnyav |
1200 kg |
| Cav Parameters | |
| Cav qauv |
YC6G180N-D30 |
| Rated zog |
120 kW |
| Rated ceev |
1500r / min |
| Lub tog raj kheej |
6 |
| Hom | Hauv kab, plaub stroke, dej -txias |
| Pob × stroke (mm) |
112mm × 132 hli |
| Kev tshem tawm (L) |
7.80L |
| Compression ratio |
11.5:1 |
| Tswj qhov system | ECU hluav taws xob tswj |
| Roj noj tus nqi |
Tsawg dua lossis sib npaug li 0.18g / kWh |
| Coolant peev (suav nrog radiator) |
51L |
| Roj muaj peev xwm |
22L |
| Overhaul lub sijhawm |
40000h
|
| Generator Parameters | |
| Qauv |
YC-100-4 |
| Kev sib txuas | Peb theem plaub hlau system (Y-zoo li tus) |
| Txoj kev tswj kev siab |
AVR
|
| Qib tiv thaiv |
IP21
|
| Rwb thaiv tsev theem |
F
|
| Kev Xeem | |
| Gas tus nqi calorific |
PEB 9.1 kWh/m³
|
| Methane ntim cov ntsiab lus |
Ntau dua lossis sib npaug li 95%
|
| Gas kub |
-20 ~ 50 degree
|
| Gas av noo |
＜60%
|
| Gas noj siab |
10 ~ 30kPa
|
| Cua nkag tsis zoo siab |
＞ -3kPa
|
| Exhaust rov qab siab |
5 kPa
|
| Tsis muaj atmospheric siab |
101.32kPa ib
|
| Environmental kub |
25 degree
|
| txheeb ze humidity |
30%
|
| Qhov siab |
Tsawg dua los yog sib npaug li 1000m
|
| Nco tseg: Tag nrho cov ntaub ntawv ntawm lub tshuab hluav taws xob roj teeb tau ntsuas hauv qhov chaw sim saum toj no. | |
